Indestrial FDM 3D Printer_G500

G500 Technical Parameters

Product model	G500
Building size	500500500mm
Printing technology	Fused Deposition Model (FDM)
Layer resolution	0.05-0.3mm
Positioning accuracy	≤0.0125mm
Is there an air filtration system？	Have
Whether to support power off and continue printing	Support
Number of nozzles	1
Print head	Monochrome printing
Print speed	30-150mm/s
Structure	Enclosed structure
Storage box	Suspended type
Lighting function	Built-in lighting LED lighting
Extrusion head diameter	Optional: 0.4, 0.6, 0.8, 1.0 mm
Extrusion head operating temperature	Max 260℃
Display screen features	3.5-inch full-color touch screen
Central Processing Unit (CPU)	32-bit ARM CPU+2560 MCU
Whether to support material break detection	Support
External storage	Support SD card plug-in and USB connection
Power requirements	AC100v-AC240v 50Hz/60Hz
OS support	Windows 7, Linux, Windows XP
File format support	STL/OBJ
Machine appearance surface treatment	Sheet metal high temperature paint creates a unique appearance
Chassis dimensions	690710910mm
Packing dimensions	8208201100mm
Machine weight	90kg
Packing specifications	High-strength packaging box that meets export standards
Recommended ambient temperature	15℃-32℃（60°-90°F）
Storage temperature	0℃-32℃（32°-90°F）

Consultation

KLIPPER High-speed system

Higher precision | More powerful control system
Positioning accuracy : XY-Axis 0.011mm
Z-Axis 0.0025mm

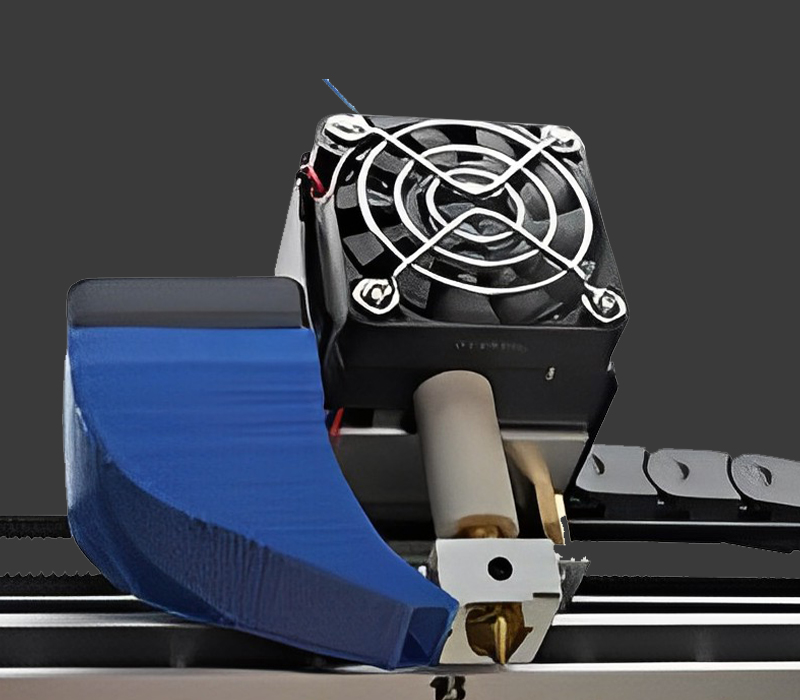

Exclusive patented nozzle Precise and stable

Patented nozzle design, no plugging and no leakage
High-precision printing Industrial grade

Imported famous brand stepper motor, high speed operation, high precision, uniform heating
Supports high temperatures up to 260°C, Compatible with PLA, ABS, WOOD, TPU, PETG, PA, etc. Printing consumables, supports more creative play
Large printing space to meet various needs

Large forming size 500*500*500mm, high-quality aluminum platform, anodized, excellent corrosion resistance, 100% flatness, effectively prevent printing warping
Industrial Linear guide

Make the nozzle assembly deviation smaller and reduce the deviation of the nozzle assembly rotating around the axis. Tank link fixed wiring harness, safer and more reliable
Multi-function Intelligent operation screen

3.5-inch full-color touch screen, new UI interface design, multi-functions are all available. Easy to operate, smooth operation, better printing experience
Upgraded thickened aluminum plate

Ultra-flat 10mm hot bed, anodized surface, excellent corrosion resistance, 100% flatness to prevent warping during printing
Power outage and continued printing

Solve the embarrassing situation caused by sudden power failure, the power-off resume function can easily achieve the ideal state of secondary printing of the model
Supports a variety of cables

With excellent technical processing, our machines can support most of the filaments on the printing market

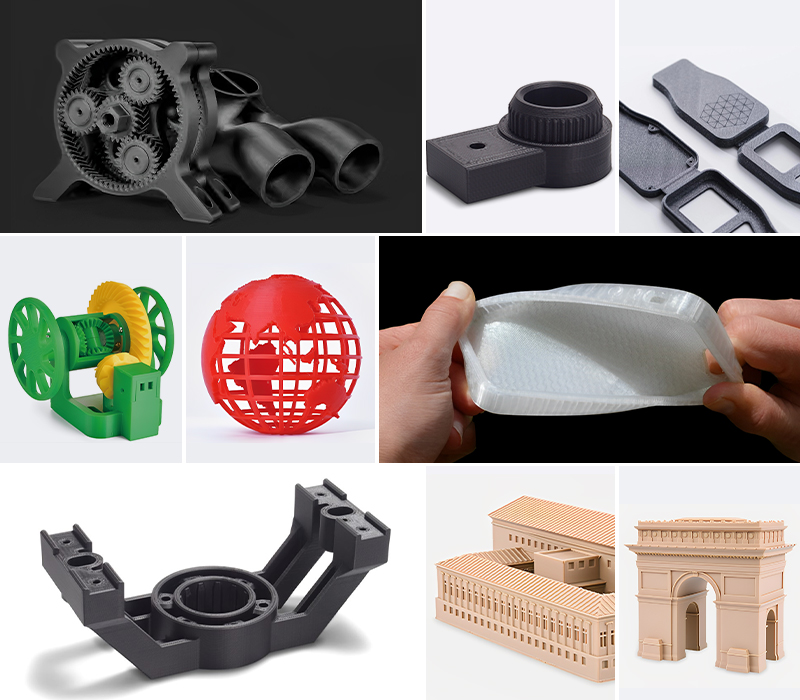

Model case display

Compatible with PLA, ABS, WOOD, TPU, PETG, PA and other printing materials, supporting more creative play
