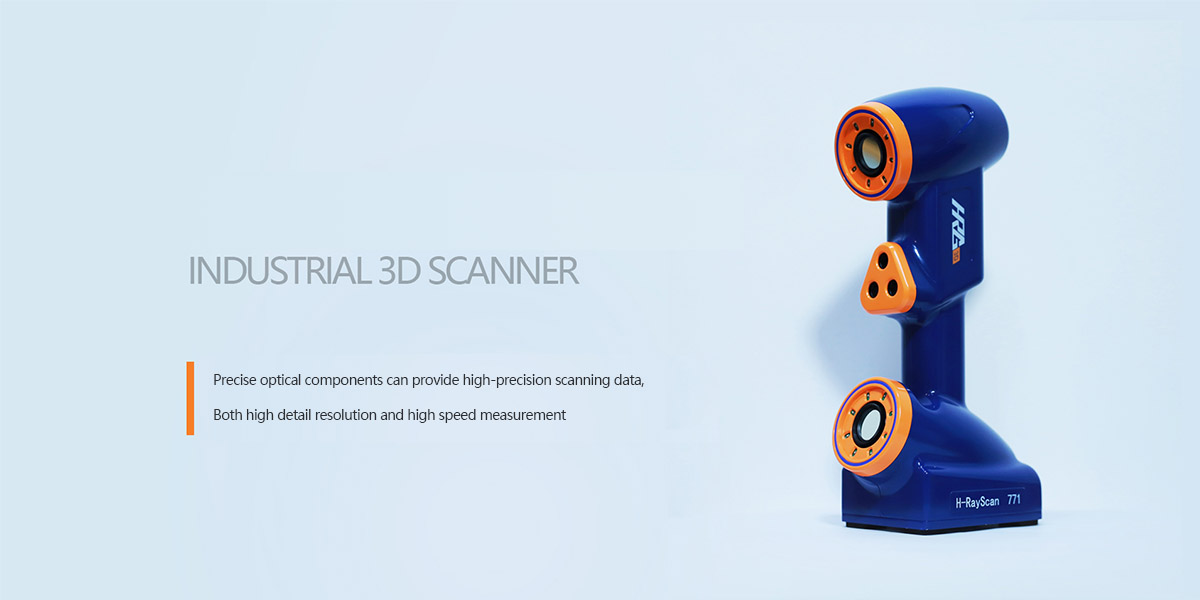

Handheld 3D Scanner

High precision and repeatability，It is mainly used in conceptual design, tooling design, reverse engineering of molds and fixtures, quality control, maintenance and repair and other fields.

Technical Parameter

Equipment model	H-rayscan 771
Measuring speed	480000 times/second
Scanning area (mm2)	320X250
Laser light source	Red/blue (14 cross lasers+1 extra)
Laser category	Class ll
Minimum resolution	zero point zero five
Wireless computing unit	support
accuracy	0.02mm maximum
Volume accuracy	0.02mm+0.03mm/m
Volume accuracy (combined with CoordMeasurement)	0.02mm+0.015mm/m

Consultation

High precision 0.02mm

The accuracy and repeatability are currently comparable to imported handheld devices. It can scan complex features and high-precision data. The software is easy to operate and the repeatability is reasonable.
Accuracy up to 0.02mm
Resolution up to 0.05mm
Scanning speed up to 1,360,000 times/second
Single frame scanning range is up to 600x550mm
Support 5G wireless transmission
Support round hole flash test
The range can reach 20~100 meters.

The measuring head is equipped with a wireless computing unit, a built-in independent power supply module, and is transmitted through wireless routing. The range can reach more than 20 meters or even 100 meters.
Obtain the boundary and hole center vector of the circular hole in real time, and export the circular hole data.
Integrated global frame scanning technology significantly improves scanning efficiency and flexibility.

Product Characteristics

Product Features

Scanning speed of 480,000 times/second, quickly obtain product prototype design
Handheld design, easy to operate
Accuracy and repeatability are currently available in handheld devices imported from Niangmei, which can scan complex features and high-precision data. The software is easy to operate and has reasonable repeatability and accuracy.
The measuring head is equipped with a wireless computing unit, a built-in independent power supply module, and is transmitted through wireless routing. The range can reach more than 20 meters or even 100 meters.
Obtain the boundary and hole center vector of the circular hole in real time, and export the circular hole data.
